Engineered equipment for water and wastewater treatment.
Envitech designs, fabricates and supplies the mechanical equipment that sits inside our treatment plants — clarifiers, aerators, presses, screens and dryers, all sized to project hydraulics and discharge criteria.
+10
Equipment lines
+30
Years engineering
+300
Projects deployed
ISO
9001 certified
01
High Rate Plate Settler
Inclined plate clarifier for high-throughput solids–liquid separation.
type Lamella / inclined plate clarifier capacity click for more
02
Aqua-Jet Mechanical Surface Aerator
Floating mechanical surface aerator for activated sludge and lagoon systems
drive 3 – 75 kW direct-drive oxygen click for more
03
Decanter Centrifuge
Continuous high-G decanter for sludge thickening and dewatering
bowl ø 250 – 750 mm g-force click for more
04
Gravity Belt Thickener
Continuous gravity drainage thickener — the low-energy first stage before press dewatering.
belt width 1.0 / 1.5 / 2.0 click for more
05
Belt Filter Press
Continuous-feed dewatering press with gravity, wedge, and high-pressure zones.
belt width 1.0 / 1.5 / 2.0 click for more
06
Screw Press
Slow-running, low-energy screw press — quiet, enclosed, low wash water.
screw ø 200 – 600 mm speed click for more
07
Manual Bar Screen
Coarse manually raked bar screen for inlet protection.
bar spacing 20 – 50 mm channel click for more
08
Automatic Bar Screen
Front-cleaned mechanically raked bar screen for continuous duty.
bar spacing 10 – 25 mm rake click for more
09
Fine Screen
Wedge-wire or perforated drum screen for fine inlet solids removal.
aperture 1 – 6 mm type Drum click for more
10
Sludge Dryer
Low-temperature belt or paddle dryer for cake-to-pellet sludge reduction.
inlet 18 – 25% DS dewatered cake click for more
01
High Rate Plate Settler
Inclined plate clarifier for high-throughput solids–liquid separation.
type Lamella / inclined plate clarifier capacity click for more
02
Aqua-Jet Mechanical Surface Aerator
Floating mechanical surface aerator for activated sludge and lagoon systems
drive 3 – 75 kW direct-drive oxygen click for more
03
Decanter Centrifuge
Continuous high-G decanter for sludge thickening and dewatering
bowl ø 250 – 750 mm
g-force up to 3,500 × g
04
Gravity Belt Thickener
Continuous gravity drainage thickener — the low-energy first stage before press dewatering.
belt width 1.0 / 1.5 / 2.0 click for more
05
Belt Filter Press
Continuous-feed dewatering press with gravity, wedge, and high-pressure zones.
belt width 1.0 / 1.5 / 2.0 click for more
06
Screw Press
Slow-running, low-energy screw press — quiet, enclosed, low wash water.
screw ø 200 – 600 mm speed click for more
07
Manual Bar Screen
Coarse manually raked bar screen for inlet protection.
bar spacing 20 – 50 mm channel click for more
08
Automatic Bar Screen
Front-cleaned mechanically raked bar screen for continuous duty.
bar spacing 10 – 25 mm rake click for more
09
Fine Screen
Wedge-wire or perforated drum screen for fine inlet solids removal.
aperture 1 – 6 mm type Drum click for more
10
Sludge Dryer
Low-temperature belt or paddle dryer for cake-to-pellet sludge reduction.
inlet 18 – 25% DS dewatered cake click for more
BESPOKE ENGINEERING
Don't see the right unit?
Every Envitech project is engineered around influent characterization, hydraulic profile and discharge criteria. Send us your brief and we'll size, quote and build.
Contact engineeringView past projects
FEATURED
01 — clarification & separation
High Rate Plate Settler01 — clarification & separation
High Rate Plate Settler
01 — clarification & separation
High Rate Plate Settler
01 — PRODUCT DETAIL
Clarification & Separation

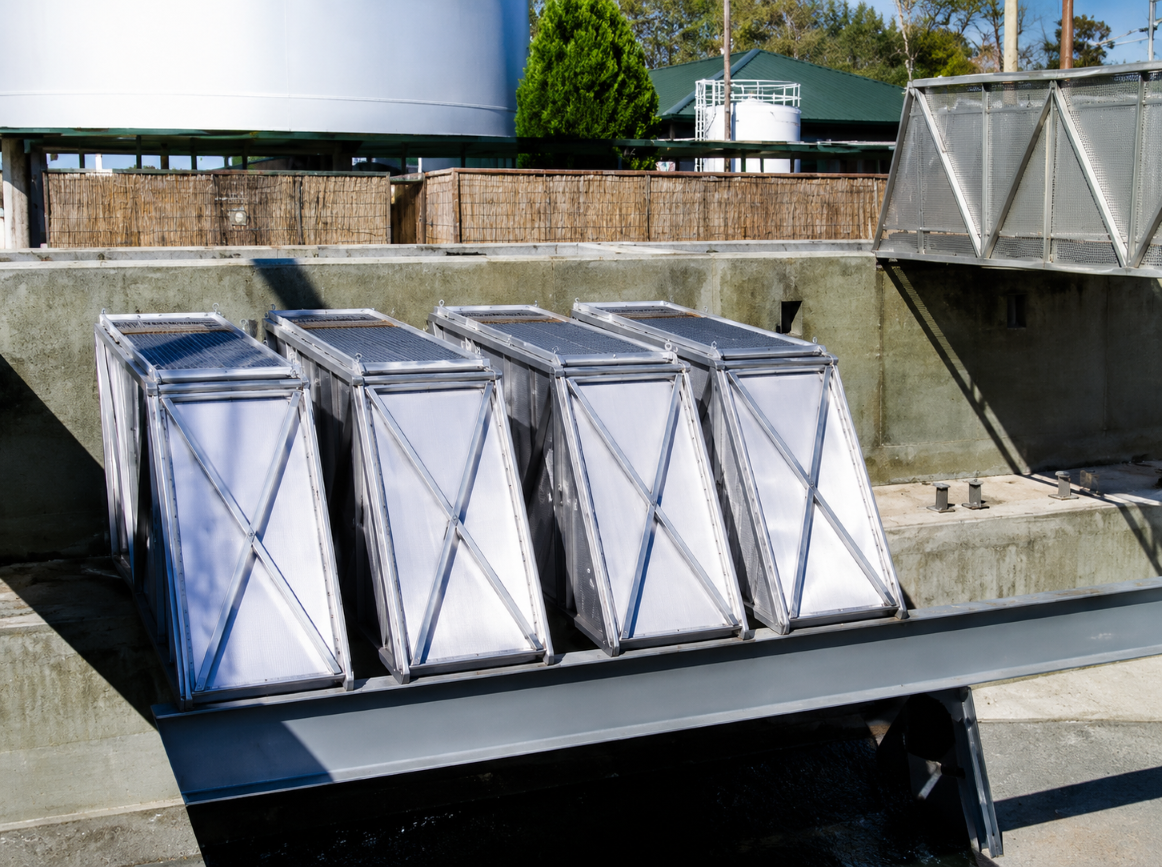

High Rate Plate Settler
Inclined plate clarifier for high-throughput solids–liquid separation.
SPECIFICATIONS
type
Lamella / inclined plate clarifier
capacity
50 – 2,000 m³/hr per module
plate angle
55° – 60°
material
SS 304 / SS 316 / FRP
applications
Raw water, process water, wastewater pre-treatment
Request QuotationDownload Quotation
Specifications are typical ranges. Final unit sized to project hydraulics, influent characterization and discharge criteria.
02 — PRODUCT DETAIL
Aeration

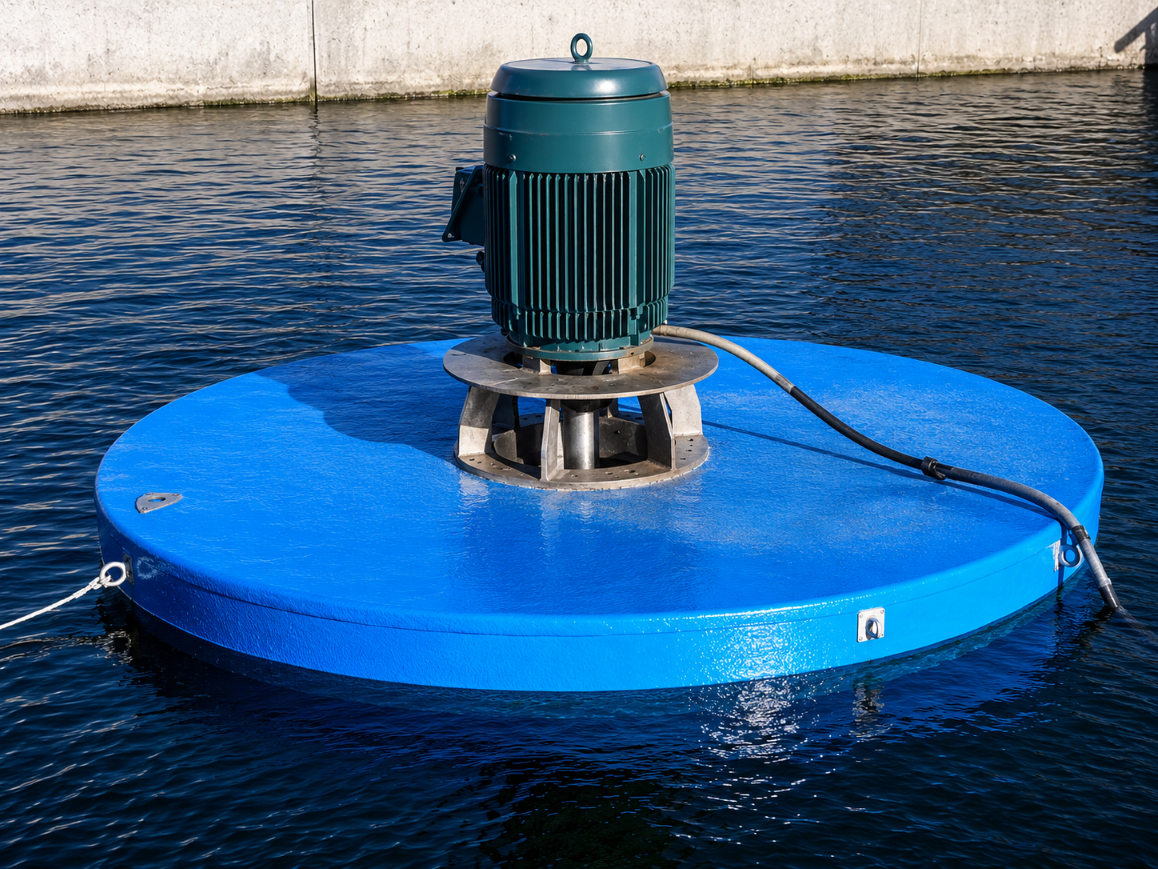

Aqua-Jet Mechanical Surface Aerator
Floating mechanical surface aerator for activated sludge and lagoon systems
SPECIFICATIONS
drive
3 – 75 kW direct-drive
oxygen transfer
1.6 – 2.2 kgO₂/kWh (SOTR)
mounting
Float-mounted / bridge-mounted
material
SS 316 impeller, HDPE float
applications
Aerobic basins, equalization, polishing ponds
Request QuotationDownload Quotation
Specifications are typical ranges. Final unit sized to project hydraulics, influent characterization and discharge criteria
03 — PRODUCT DETAIL
Sludge Dewatering

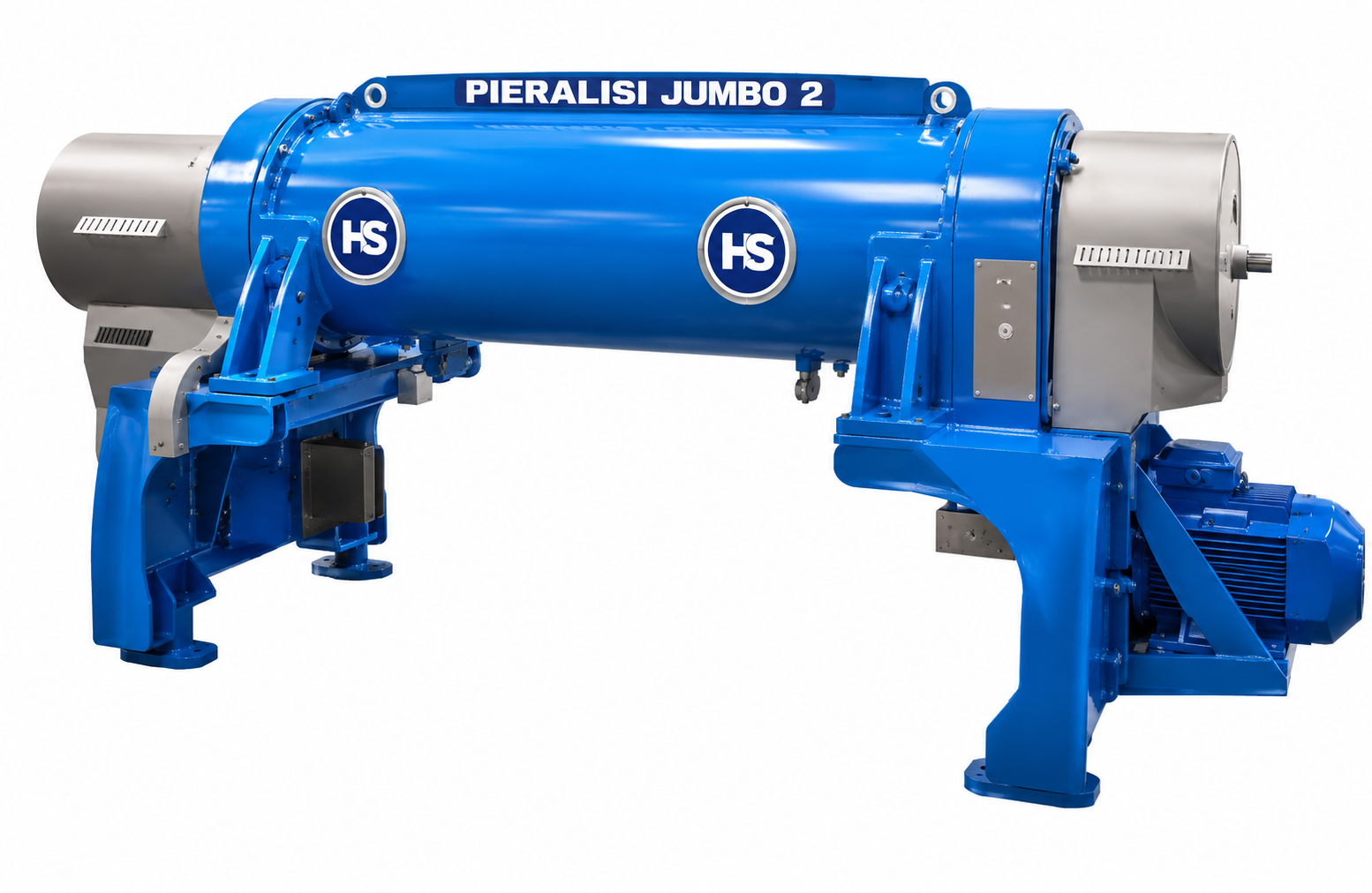

Decanter Centrifuge
Continuous high-G decanter for sludge thickening and dewatering.
SPECIFICATIONS
bowl ø
250 – 750 mm
g-forc
up to 3,500 × g
throughput
1 – 60 m³/hr
cake dryness
18 – 28% DS typical
drive
VFD main + back-drive
Request QuotationDownload Quotation
Specifications are typical ranges. Final unit sized to project hydraulics, influent characterization and discharge criteria.
04 — PRODUCT DETAIL
Sludge Dewatering

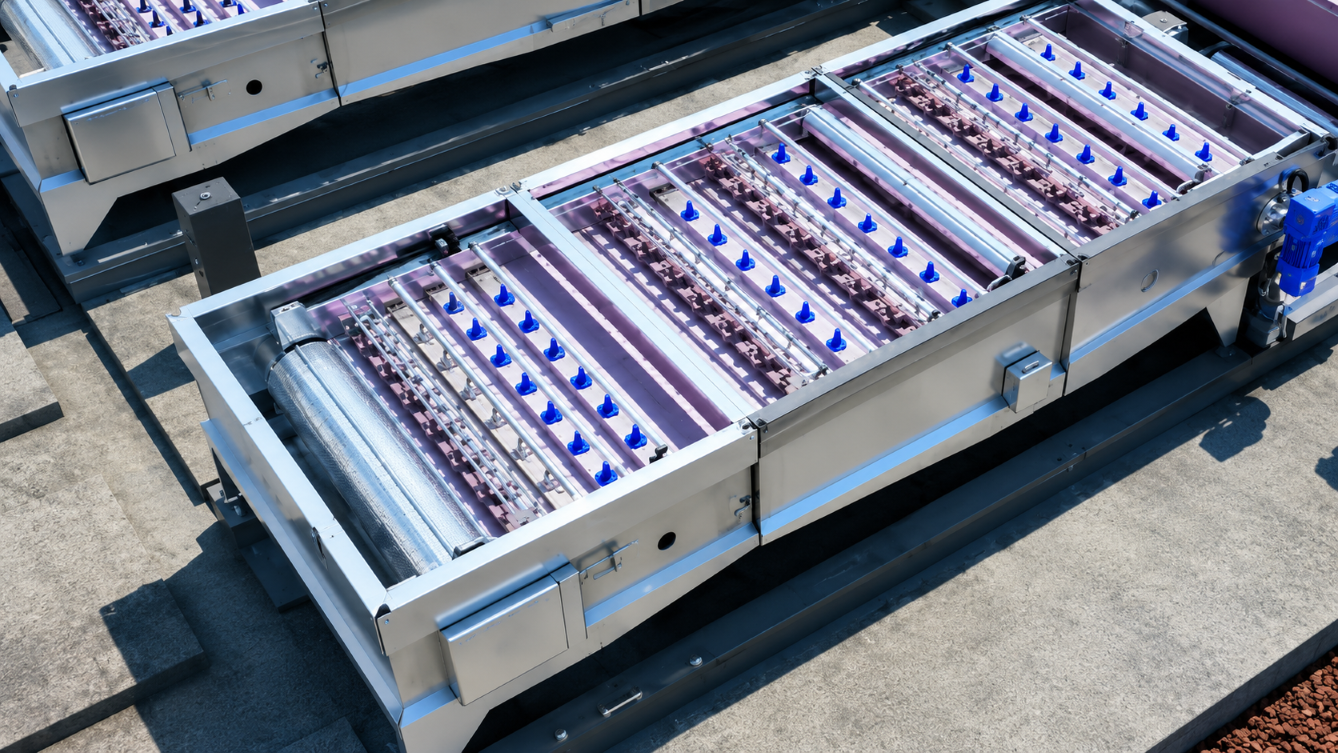

Gravity Belt Thickener
Continuous gravity drainage thickener — the low-energy first stage before press dewatering.
SPECIFICATIONS
belt width
1.0 / 1.5 / 2.0 / 3.0 m
throughput
20 – 150 m³/hr feed
output
5 – 8% DS thickened sludge
power
0.75 – 2.2 kW
Request QuotationDownload Quotation
Specifications are typical ranges. Final unit sized to project hydraulics, influent characterization and discharge criteria.
05 — PRODUCT DETAIL
Sludge Dewatering

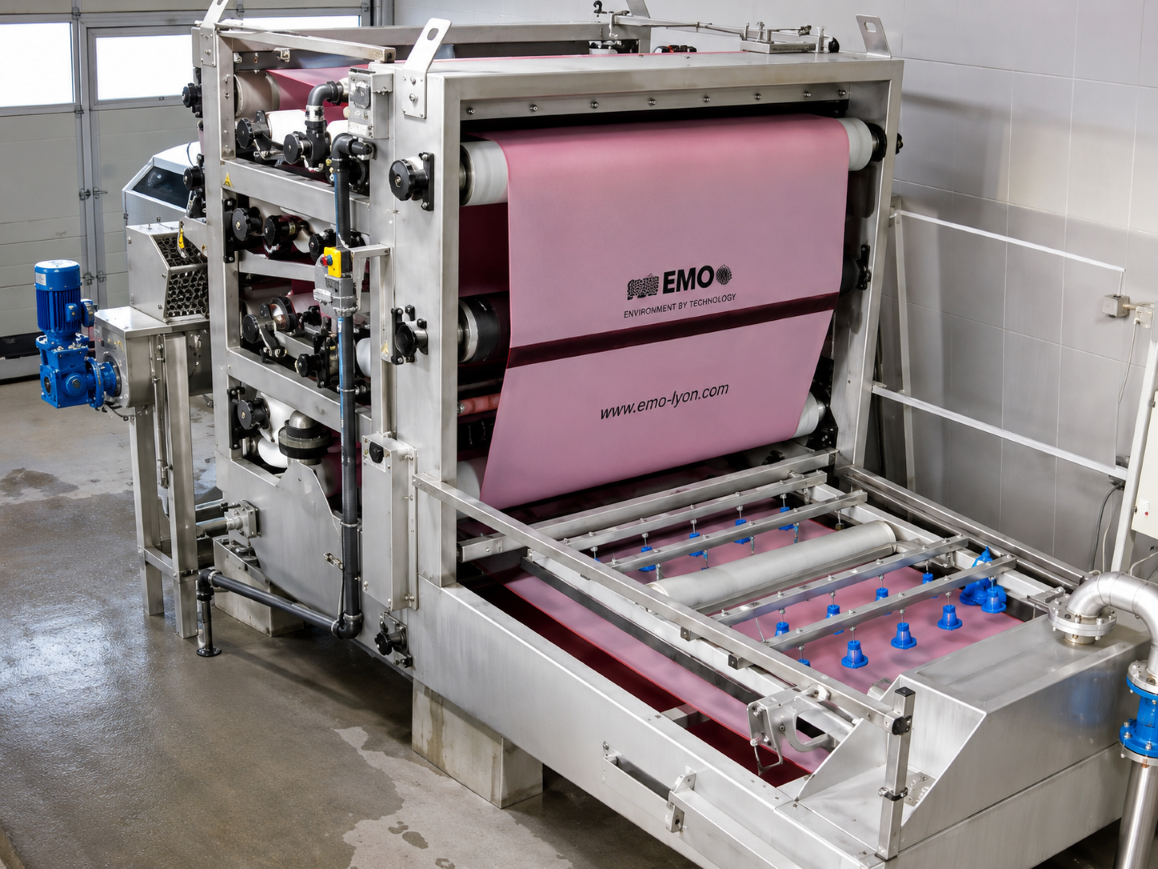

Belt Filter Press
Continuous-feed dewatering press with gravity, wedge, and high-pressure zones.
SPECIFICATIONS
belt width
1.0 / 1.5 / 2.0 m
pressing zones
Gravity → wedge → S-roll high pressure
cake dryness
16 – 22% DS typical
throughput
8 – 40 m³/hr
Request QuotationDownload Quotation
Specifications are typical ranges. Final unit sized to project hydraulics, influent characterization and discharge criteria.
06 — PRODUCT DETAIL
Sludge Dewatering

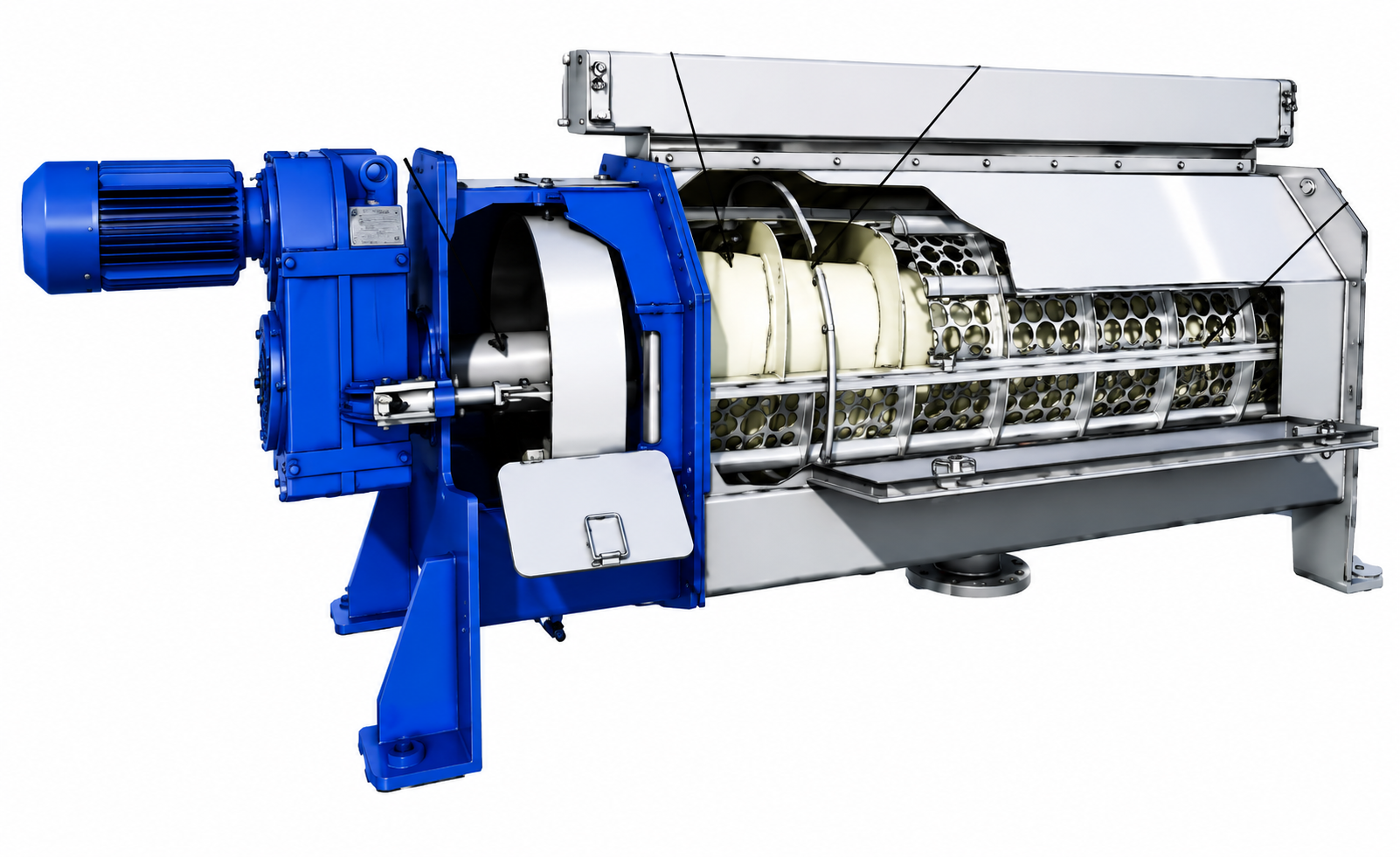

Screw Press
Slow-running, low-energy screw press — quiet, enclosed, low wash water
SPECIFICATIONS
screw ø
200 – 600 mm
speed
0.3 – 1.5 rpm
throughput
1 – 25 m³/hr
wash water
≈ 0.3 m³/hr — significantly lower than belt press
Request QuotationDownload Quotation
Specifications are typical ranges. Final unit sized to project hydraulics, influent characterization and discharge criteria.
07 — PRODUCT DETAIL
Sludge Dewatering
Manual Bar Screen
Coarse manually raked bar screen for inlet protection
SPECIFICATIONS
bar spacing
20 – 50 mm
channel width
0.4 – 2.0 m
throughput
SS 304 frame, MS hot-dip galv. bars
Request QuotationDownload Quotation
Specifications are typical ranges. Final unit sized to project hydraulics, influent characterization and discharge criteria.
08 — PRODUCT DETAIL
Sludge Dewatering

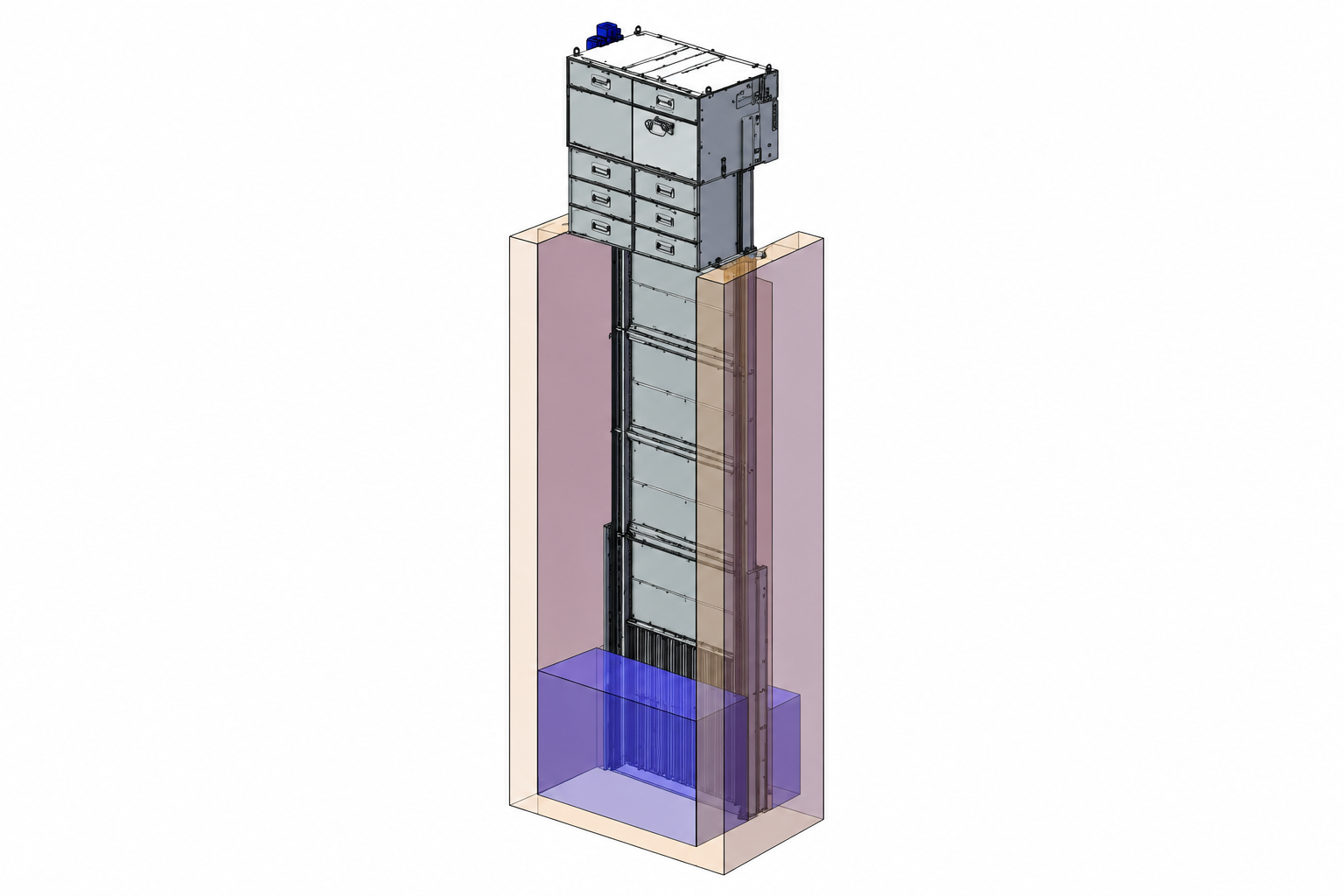

Automatic Bar Screen
Front-cleaned mechanically raked bar screen for continuous duty.
SPECIFICATIONS
bar spacing
10 – 25 mm
rake travel
Chain or cable, front-cleaned
control
Differential level + timed cycle
material
SS 304 / SS 316
Request QuotationDownload Quotation
Specifications are typical ranges. Final unit sized to project hydraulics, influent characterization and discharge criteria.
09 — PRODUCT DETAIL
Sludge Dewatering

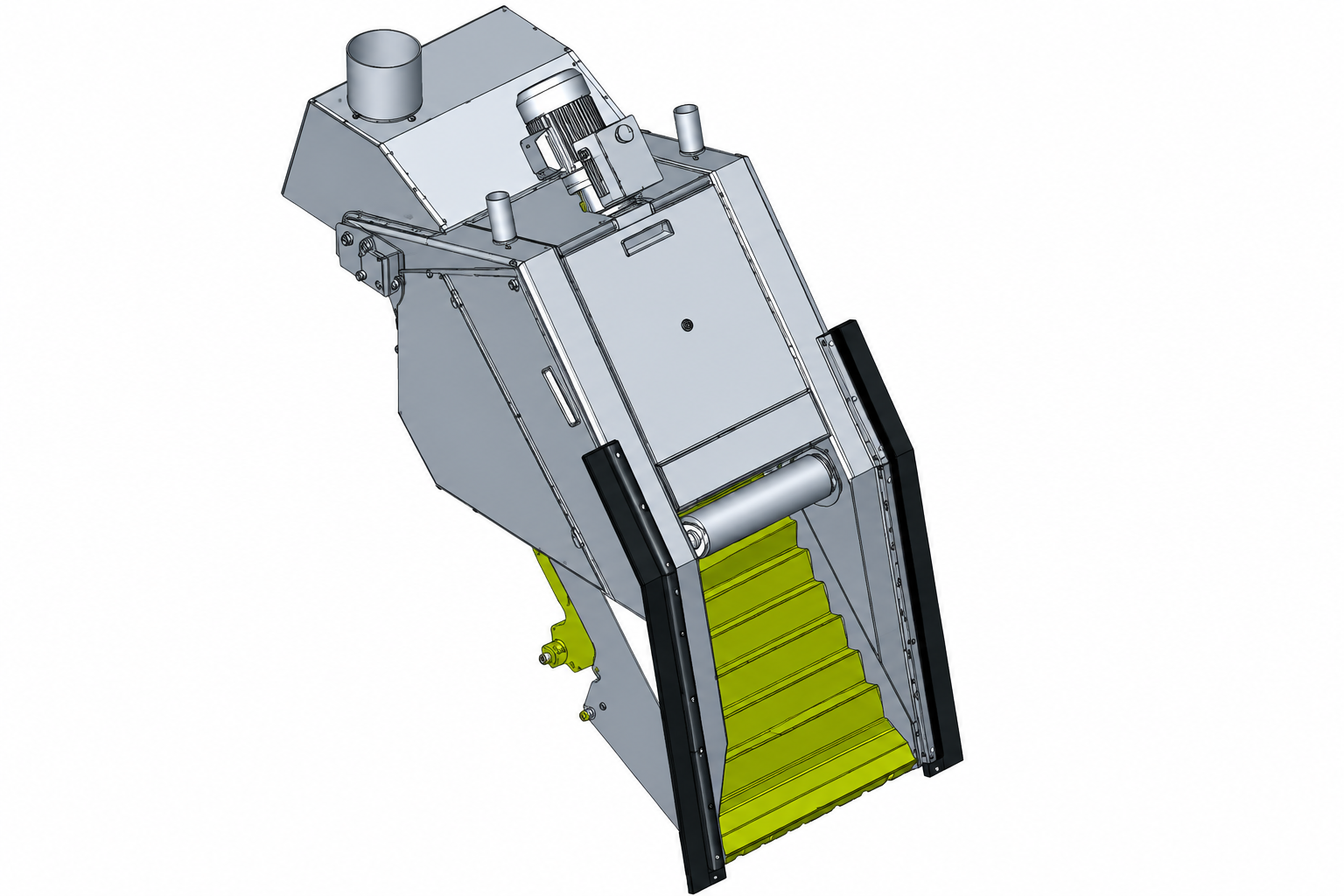

Fine Screen
Wedge-wire or perforated drum screen for fine inlet solids removal.
SPECIFICATIONS
aperture
1 – 6 mm
type
Drum / step / band — sized to flow
capture
≥ 70% TSS > 6 mm
material
SS 304 / SS 316 wedge wire
Request QuotationDownload Quotation
Specifications are typical ranges. Final unit sized to project hydraulics, influent characterization and discharge criteria.
10 — PRODUCT DETAIL
Sludge Dewatering
Sludge Dryer
Low-temperature belt or paddle dryer for cake-to-pellet sludge reduction.
SPECIFICATIONS
inlet
18 – 25% DS dewatered cake
outlet
85 – 92% DS
heat source
Hot water 75 – 95 °C / waste heat / steam
energy
0.85 – 1.1 kWh / kg H₂O evaporated
Request QuotationDownload Quotation
Specifications are typical ranges. Final unit sized to project hydraulics, influent characterization and discharge criteria.
